Pipe Rotators & CNC Pipe Cutting
Kistler pipe rotators and CNC cutters turn a two-person pipe joint into one. The welder stays in position while the machine clamps, rotates, and tilts the pipe to meet the torch.
Made in Germany by Kistler Maschinen- und Anlagenbau GmbH · US distribution by Inmotion, Jacksonville FL
Why shops add a rotator
Wrestle a 6-inch Schedule 80 pipe onto sawhorses, tack it, grind the tack, roll it by hand, and re-tack. Four times a joint, two people on it.
One to hold and roll the pipe, one to weld. A rotator frees the second welder to work on something else.
Rolling by hand means breaking the arc to reposition. Every restart is lost time and a place for a defect to start.
Pipe you can't turn forces vertical and overhead passes. Slower, harder, and more rework than flat-position work.
Branch and saddle cuts done freehand are slow and rough, and the edge needs heavy grinding before it will weld.
A rotator and a CNC cutter turn all of that into a continuous, one-operator flow.

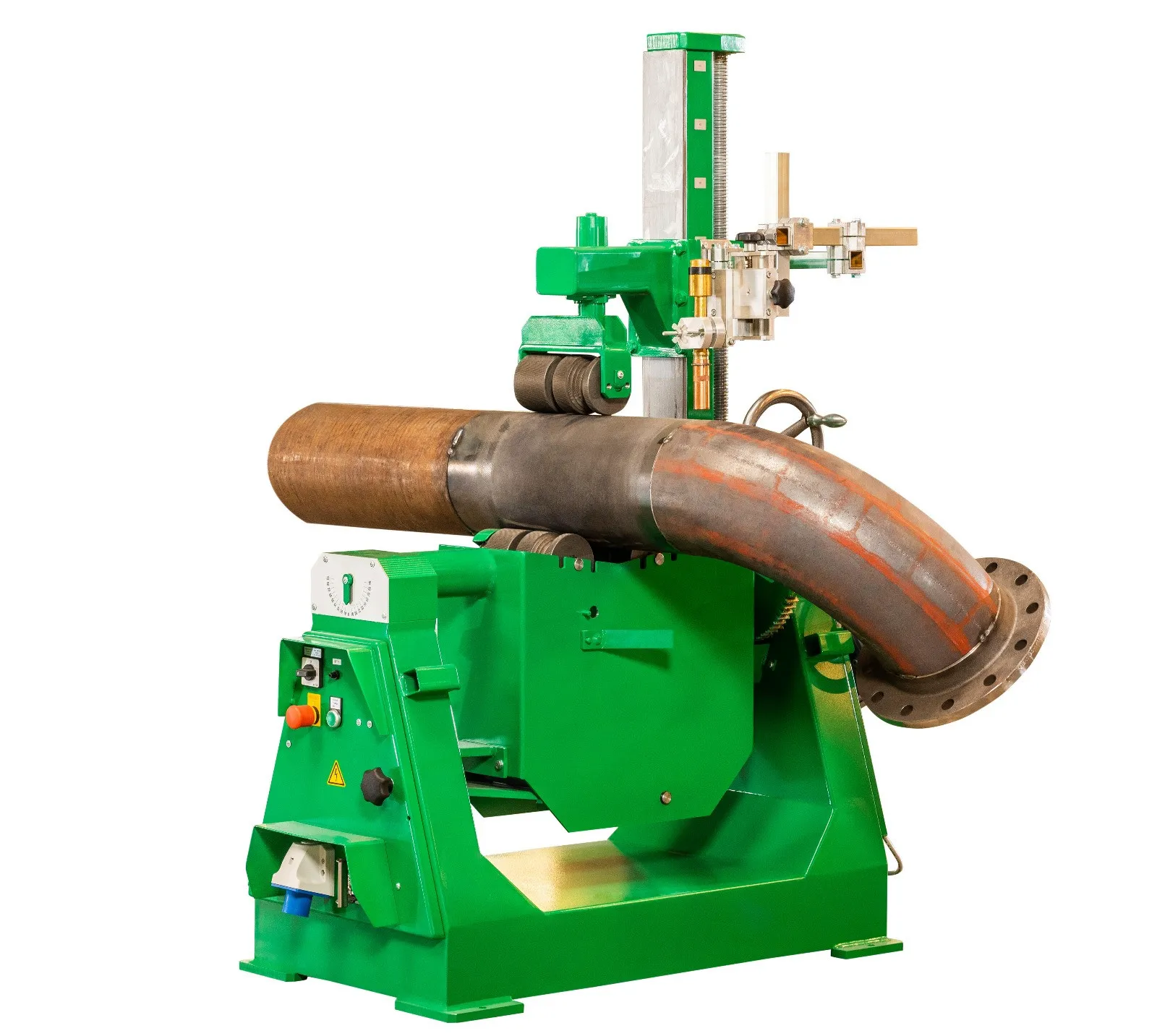

U Range pipe rotators
Centers and clamps fast, with no chuck or clamping shoes to swap. Rotation speed holds steady whatever the pipe diameter, thanks to a separate drive.
Turn the pipe and tilt it from horizontal so every weld runs in the flat position, where it's fastest and cleanest. Rotation and tilt work independently or at once.
Elbows, tees, and flanged assemblies sit on the rollers without throwing off the drive. The U Range covers shop pipe up through heavy production work.

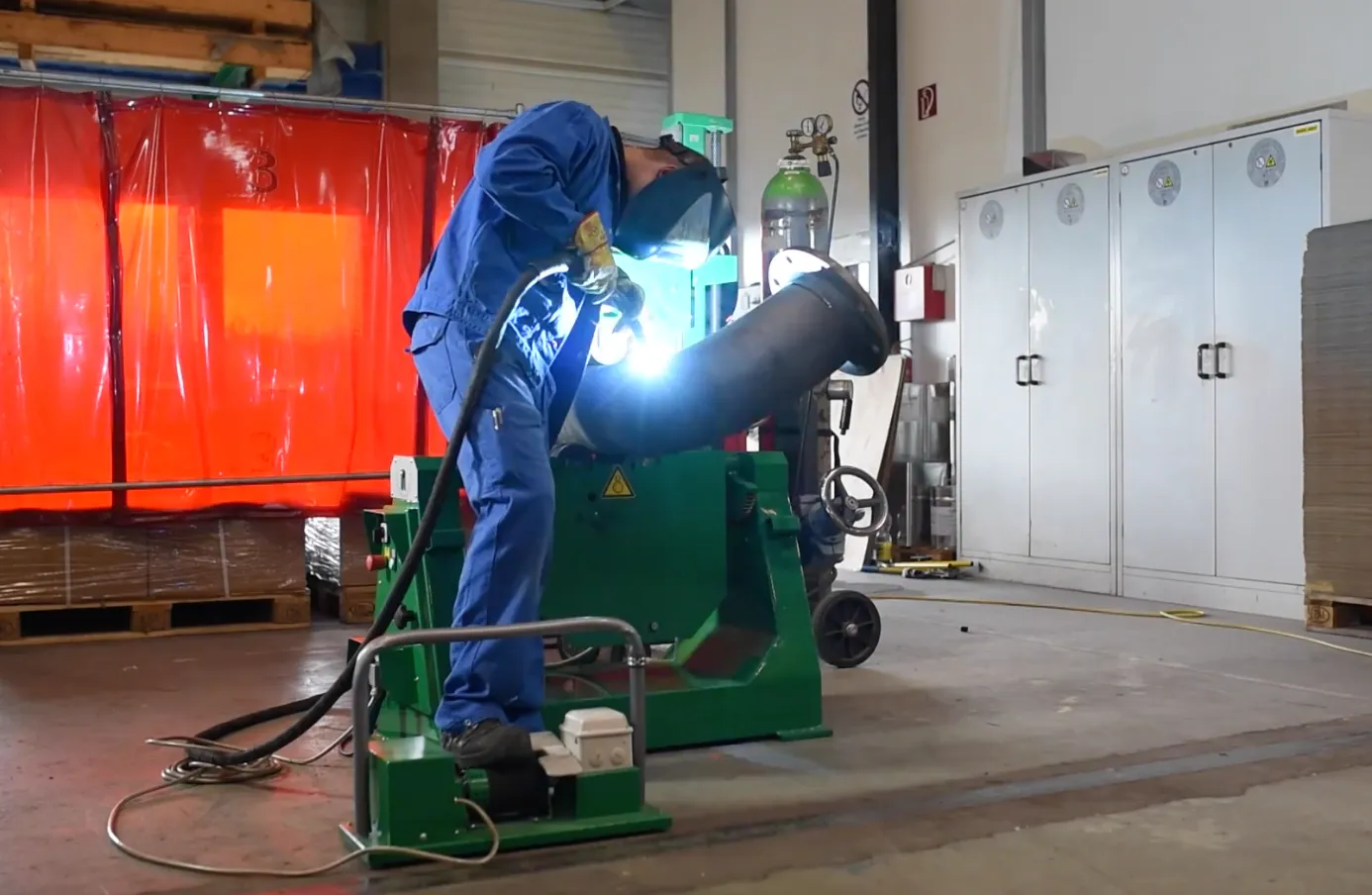

One operator clamps the pipe, sets the rotation speed, and welds a continuous pass while the rotator turns it under the torch.

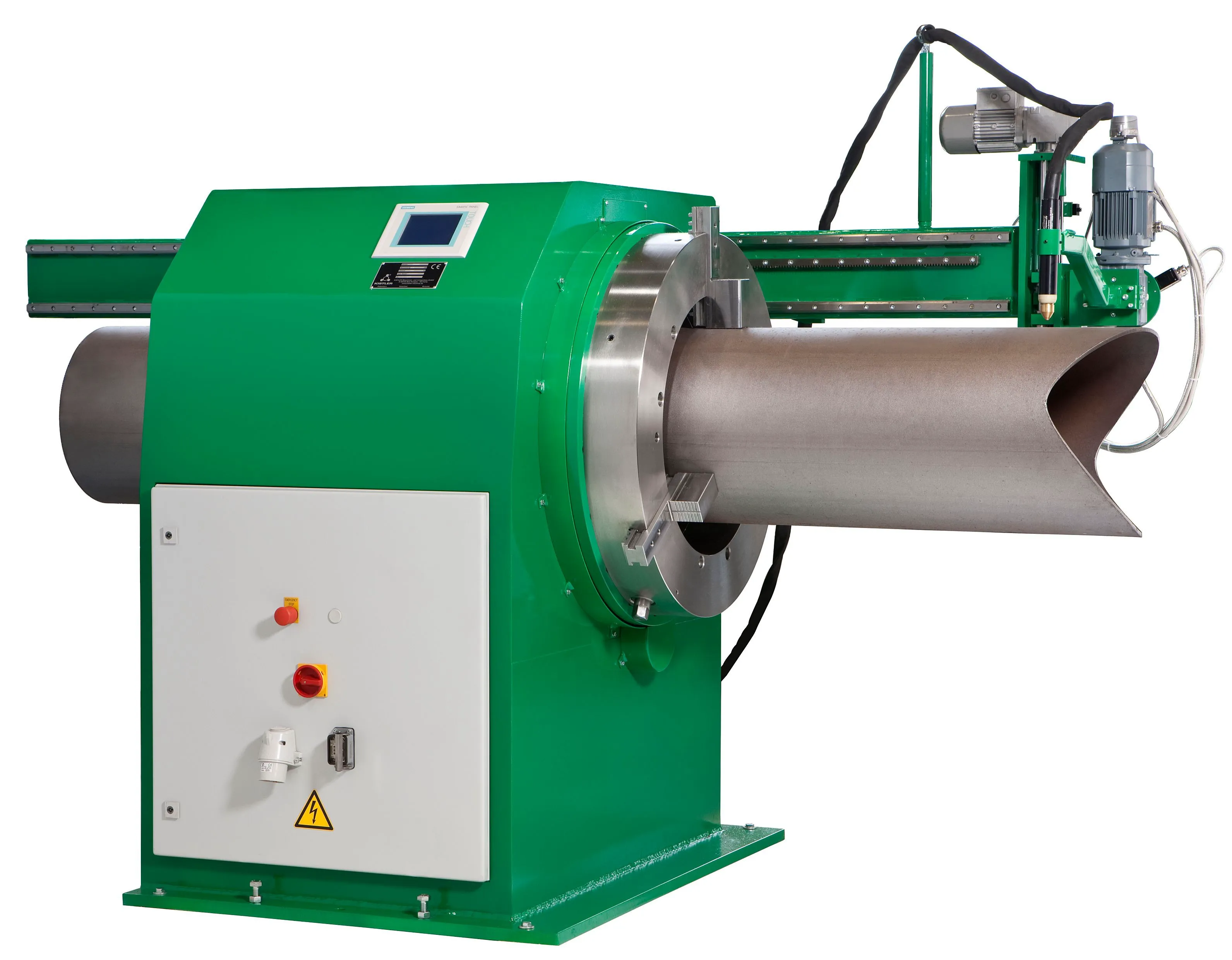

SCM CNC pipe cutting
A driven chuck turns the pipe while the torch tracks the surface. Straight ends, miters, and branch saddles come off clean and repeatable, every time.
Pick the cut type, enter the pipe size, and the PLC generates the path. No G-code, so a new operator is productive fast and the machine keeps running across shift changes.
Cut carbon steel, stainless, and alloy pipe. Add the optional third axis for a prepared weld bevel in the same setup.
Where they run
Long circumferential seams welded flat, start to finish, with the vessel turning under a fixed torch.
Prefab spools cut, fit, and welded faster, with consistent joints that hold up to inspection.
Monopiles and tower sections. The large-diameter, heavy-rotation work the Kistler rotator range is built around.
Heavy pipe and structural welds where fit-up and welding position decide whether you hit the schedule.
Why it pays
Pipe fabrication quality depends on two things. Joint fit-up and weld execution. Kistler covers both.
Ready to weld, not ready to grind, A CNC-cut pipe end matches its mating surface with a consistent gap and a uniform bevel. That means less filler metal, fewer passes, and lower distortion.
Gravity on the welder's side, A rotator keeps the joint flat, where welding is faster, cleaner, and lays down more metal per pass. It converts an all-position joint into flat-position work.
One operator, more throughput, Clamp, rotate, and tilt from a single station. The second welder is no longer holding pipe and is free to weld something else.
German build, US support, Made by Kistler Maschinen- und Anlagenbau GmbH in Germany. Sold, quoted, and supported by Inmotion from Jacksonville, FL, without overseas lead times.
At a glance
| Product lines | U Range pipe rotators · SCM CNC pipe cutting |
|---|---|
| Rotator models | U 150 (shop), U 500 (mid-range), U 1000 (heavy production), tilting and non-tilting (H) variants |
| Rotator function | Clamp, rotate, and tilt round pipe, manual or motorized |
| Pipe handling | Small shop pipe up to large-diameter, heavy assemblies |
| SCM cutting | 2 PLC-controlled axes standard, optional 3rd axis for beveling |
| Cut types | Straight, miter, branch saddle, and beveled |
| Cutting process | Plasma or oxy-fuel |
| Manufacturer | Kistler Maschinen- und Anlagenbau GmbH, Germany |
| Full specifications | Sizing, load ratings, and electrical are configured per order — request a quote |
FAQ
It depends on your pipe diameter, weight, and whether you need tilting. The U 150 suits small shop pipe, the U 500 mid-range fabrication, and the U 1000 heavy production welding. Tell us your pipe and we'll spec it.
Yes. Plasma cuts stainless, aluminum, and other conductive metals; oxy-fuel handles carbon steel. The PLC control runs the same profile either way, only the cutting process changes.
No. The SCM is menu-driven. Select the cut type, enter the pipe dimensions, and the controller generates the cutting path. No G-code or manual programming.
Yes. The controlled rotation speed suits mechanized and automated setups, including column-and-boom systems. Tell us your process and we'll confirm the fit.
Request a quote
Tell us your pipe sizes and the work, and we'll send a configured quote for the rotator, the cutter, or both.
One operator per joint, not two. Clamp, rotate, and tilt from one station, and free your second welder for other work.
Ready-to-weld pipe ends. CNC profile cutting gives a consistent gap and bevel, so the joint is ready to weld instead of ready to grind.
Made in Germany, supported in the US by Inmotion. Quotes, delivery, and technical support from Jacksonville, FL, without overseas lead times.
